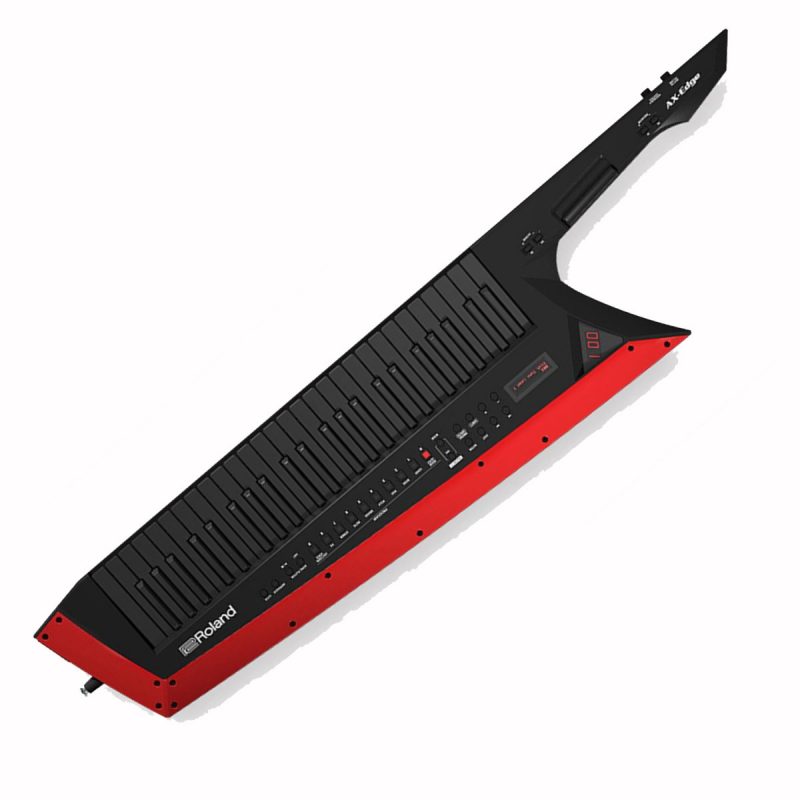

Roland AX-Edge BK

Descrizione

SPECIFICATIONS

Keyboard

49 keys (with velocity and channel aftertouch)

Sound Generator

Synth-EX

Maximum Polyphony

256 voices (varies according to the sound generator load)

Parts

4 parts + Vocoder part

Tones

User Program: 320
Preset Tone: Over 500
User Tone: 256

Effects

Part Multi-effects: 79 types
Part EQ
Vocoder
Program Multi-effects (IFX): 79 types
Chorus: 8 types
Reverb: 6 types
Master Compressor
Master EQ

Other Functions

Favorite
Song Player
Arpeggio
Vocoder
MIDI Master Keyboard
Sound Edit

* You can use the smartphone AX-Edge Editor app (Android version/iOS version) to edit the AX-Edge’s sounds.

Controllers

Ribbon Controller
Modulation Bar
Assignable Control knob
Master Volume knob
Assignable buttons x 7
Pedal
Aftertouch

Bluetooth

MIDI: Bluetooth Ver. 4.1 (Bluetooth LE)

Display

16 characters 2 line LCD

External Storage Device

USB flash drive

Connectors

PHONES jack: stereo 1/4-inch phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
MIC INPUT jack: 1/4-inch phone type
PEDAL jack
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (supports USB MIDI)
DC IN jack

Power Supply

DC 9 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8

Current Draw

1,000 mA
* Battery life for continuous use (differs depending on the conditions of use)
Rechargeable nickel metal hydride batteries: approximately 4 hours
* Carbon-zinc or alkaline batteries cannot be used

Accessories

Owner’s manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
Strap
Blade panel (including Hex key, screws)
Ferrite core (including Band for fastening the core)

Options (sold separately)

AX-Edge stand (ST-AX2)
Pedal switch: DP series
Expression pedal: EV-5

SIZE AND WEIGHT

Width

1,252 mm
49-5/16 inches

Depth

291 mm
11-1/2 inches

Height

85 mm
3-3/8 inches

Weight (excluding AC adaptor, Batteries)

4.2 kg
9 lbs. 5 oz
