Celestion TF1220 150W 8ohm LF Ferrite

Descrizione

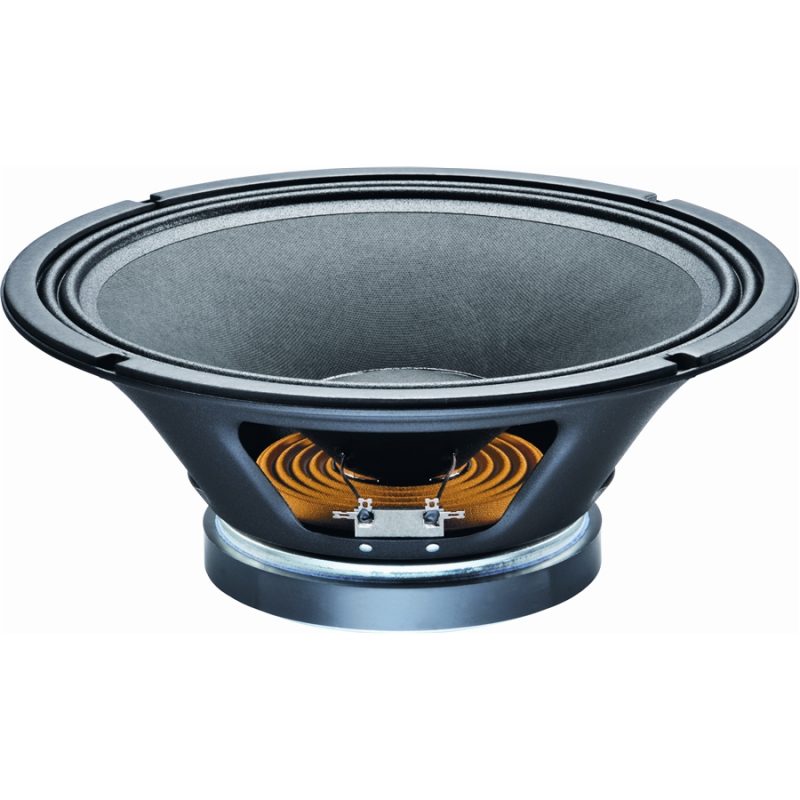

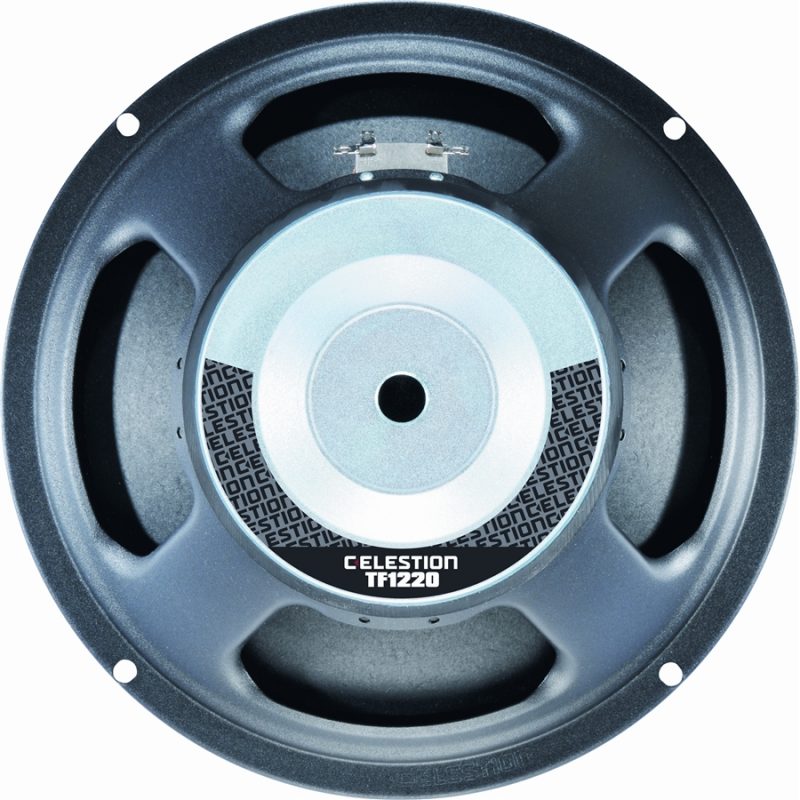

Celestion – TF1220 150W 8ohm – LF Pressed Steel Chassis Loudspeaker – Ferrite

Altoparlante da 12″ con chassis in acciaio stampato, magnete in ferrite, bobina da 2″, potenza 150Watt, impedenza 8ohm

Caratteristiche

– 12″ Bass and mid-range driver providing 97dB sensitivity and 150Wrms (AES standard) power handling

– 2″ high temperature copper voice coil wound on polyimide for increased reliability

– Ideal for use in 2-way high pass systems

– Rigid chasis design for maximum energy transfer

– Excellent performance at cost-effective price point

Specifiche Generali

Nominal diameter: 305mm/12in

Power rating(1): 150Wrms

Continuous power rating(2): 300W

EIA power rating(3): 250W

Nominal impedance: 8ohm

Sensitivity(4): 97dB

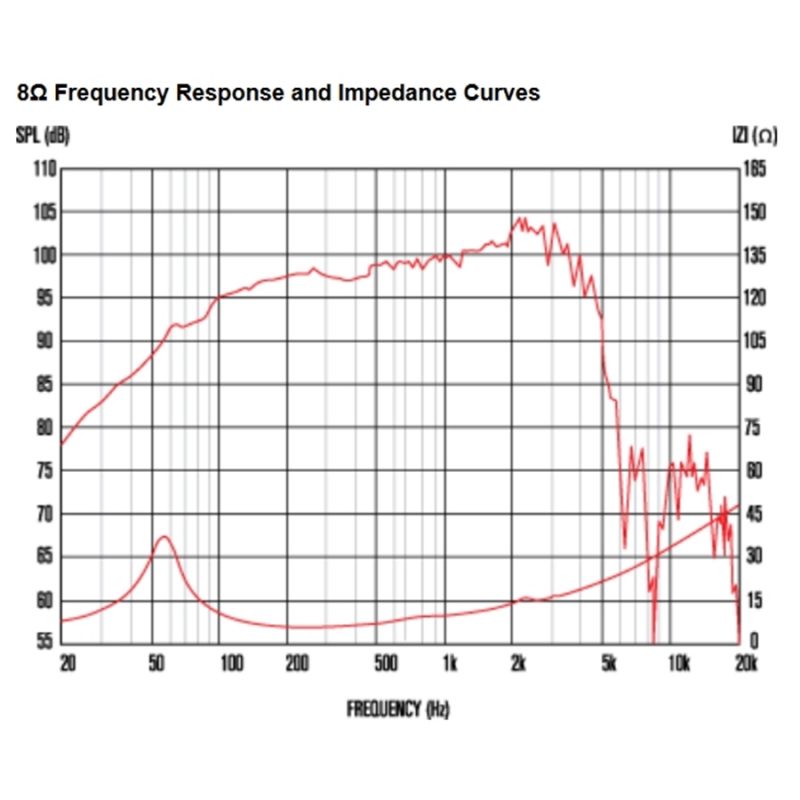

Frequency range: 60-4000Hz

Voice coil diameter: 50mm/2in

Chassis type: Pressed steel

Magnet type: Ferrite

Magnet weight: 1.2kg/42oz

Coil material: Round copper

Former material: Polyimide

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Xmax(5): 2mm/0.08in

Gap depth: 8mm/0.31in

Voice coil winding width: 12mm/0.47in

Parametri di Thiele-Small

D: 0.26m/10.24in

Fs: 55Hz

Mms: 38.91g/1.37oz

Qms: 4.30

Qes: 0.46

Mmd: 32.0g/1.258oz

Qts: 0.42

Re: 5.54ohm

Vas: 84.7lt/2.99ft3

BI: 12.70Tm

Cms: 0.21mm/N

Rms: 3.16kg/s

Le (at 1kHz): 0.735mH

Informazioni di Montaggio

Overall diameter: 309mm/12.17in

Overall depth: 131mm/5.16in

Cut-out diameter: 283mm/11.14in

Mounting slot dimensions: Ø7.9mm/0.31in

Number of mounting slots: 4

Mounting PCD range: 297mm/11.69in

Unit weight: 5kg/11lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Tested as per the EIA-426-A standard.

(4)Measured on axis at 1W, 1m in 2pi anechoic environment.

(5)Xmax derived from: (voice coil winding width-gap depth)/2.

(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
